WS-30 MOPA

30 WATT

Fiber laser marking machine

ASK QUESTION CALL SHARE
Model WS-30 MOPA
Laser Output Power 30 Watt
Laser Power 30 Watt
Peak Power 0.8 MJ
Pulse Duration 2 - 500 ns adjustable pulse duration
Laser Repetition Frequency 1-4000 kHz adjustable frequency
Marking Speed 8000 mm/s
Wavelength 1064
Marking Area Standard 110 mm-Max 300 mm
Repeatability Accuracy 0.001 mm
Min. Line Width 0.017 mm
Min. Character Size 0.2 mm
Cooling Air Cooling
Preview Method Red laser preview
Focusing System 2 Point Laser Pointer Easy focusing system
Control Software EzCad2 ODMTECH Edition and Optional Options
Supported Formats PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF, CAD, CDR, DWG
Laser Control Board BJJCZ and Optional options
Operating Voltage AC220V/50Hz
Supported Operating Systems Windows XP, 7, 8, 10 (32-64bit)
Applicable Materials All metal types, plastic and chemical derivatives

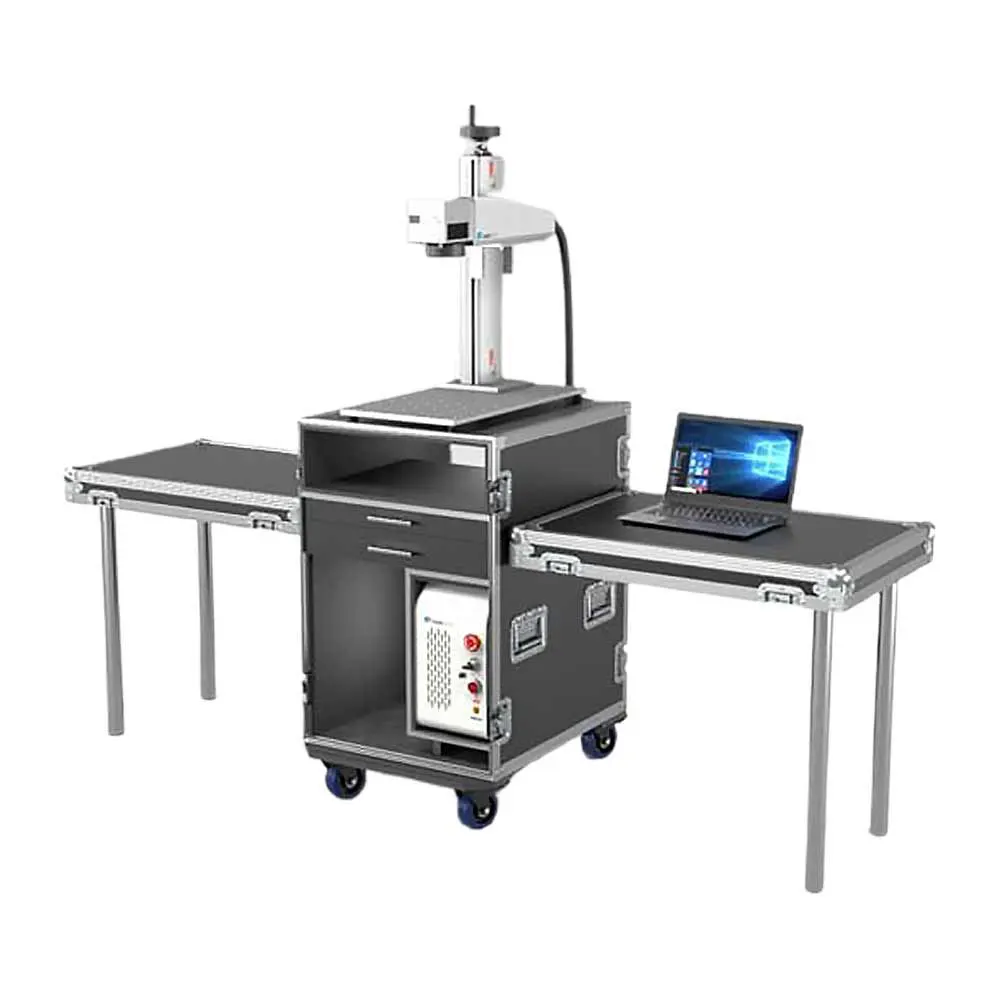

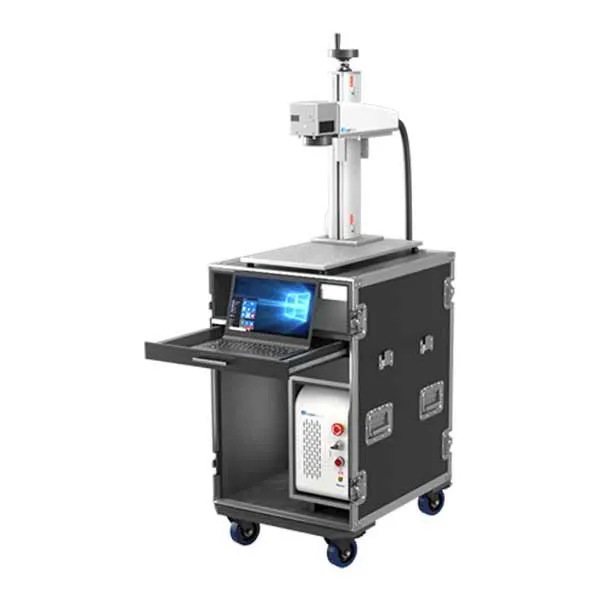

Machine ODMTECH WS Series Fiber Laser Workstation. S Series Fiber Laser Machine integrated
Machine Notebook computer with Fiber Laser control software.
Accessory Foot Start Pedal (Footswitch) External hardware that functions to start laser marking
Accessory Paint coated aluminum test cards (100 pieces)
Accessory Safety glasses with laser beam filter
Accessory Allen Key Set
Accessory Dust and water resistant, locked power cable (220V)
Accessory USB Type-B data link cable
odm-tech-logo-large

Our ODMTECH Branded machines are designed for uninterrupted and long-term operation.

In ODMTECH Fiber Laser Machine components; It attaches great importance to providing high technology with user-friendly capabilities and affordable prices in cooperation with the world-renowned manufacturers
