C-30

30 WATT

Fiber laser marking machine

Model C series
Laser Power 30 Watt
Wavelength 1064
Marking Area Standard: 110 mm * 110 mm Optional: 70 * 70mm- 150 * 150mm - 175 * 175mm
Laser Repetition Frequency 20.000KHz - 80.000Khz Optional: 1.000KHz - 600.000Khz
Marking Speed 1 - 8000mm/s high speed scan head
Marking Depth 0.01-2mm (values ​​vary by material)
Repetition Sensibility 0.001mm
Min. Line Width 0.017mm
Min. Character Size 0.2mm
Cooling 5 fan assisted air cooling / Aluminum body
Preview Method Red laser pointer preview
Easy focus system 2 Point Laser Pointer, Electric lift control
Control Software EzCad2 ODMTECH Edition
Supported Formats PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG,TIF, TIFF, CAD, CDR, DWG
Laser Control Mainboard Beijing JCZ LMCV4-FIBER-M
Operating voltage AC220V/50Hz
Supported operating systems Windows XP, 7, 8, 10 (32-64bit)
Applicable materials All metal types, plastic and chemical derivatives
Standard Package Content Plug-Play ODMTECH C Series fiber laser marking machine, Usb Memory Card Including Software and Training Videos Usb data cable, fiber laser Control software Water-dust resistant power cable, Foot pedal, Optical filter protection goggles, 100 aluminum test cards, Allen key set, Industrial Level Cargo Box (Pallet or Wheeled) Case (820x570x970mm - 100kg gross) ""
Optional Equipments Jeweler Type Divider, Auto Focus, Vacuum

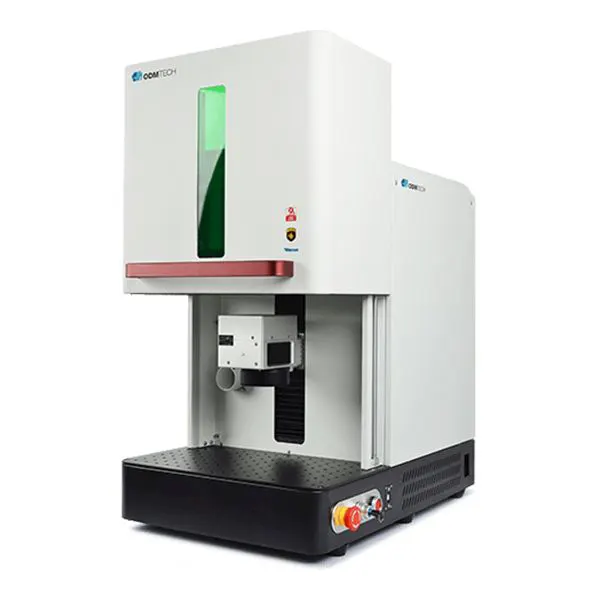

Machine ODMTECH C Series Fiber Laser Marking, Cutting and Engraving System.
Accessory Foot Start Pedal (Footswitch) External hardware that functions to start laser marking
Accessory Paint coated aluminum test cards (100 pieces)
Accessory Safety glasses with laser beam filter
Accessory Allen Key Set
Accessory Dust and water resistant, locked power cable (220V)
Accessory USB Type-B data link cable
